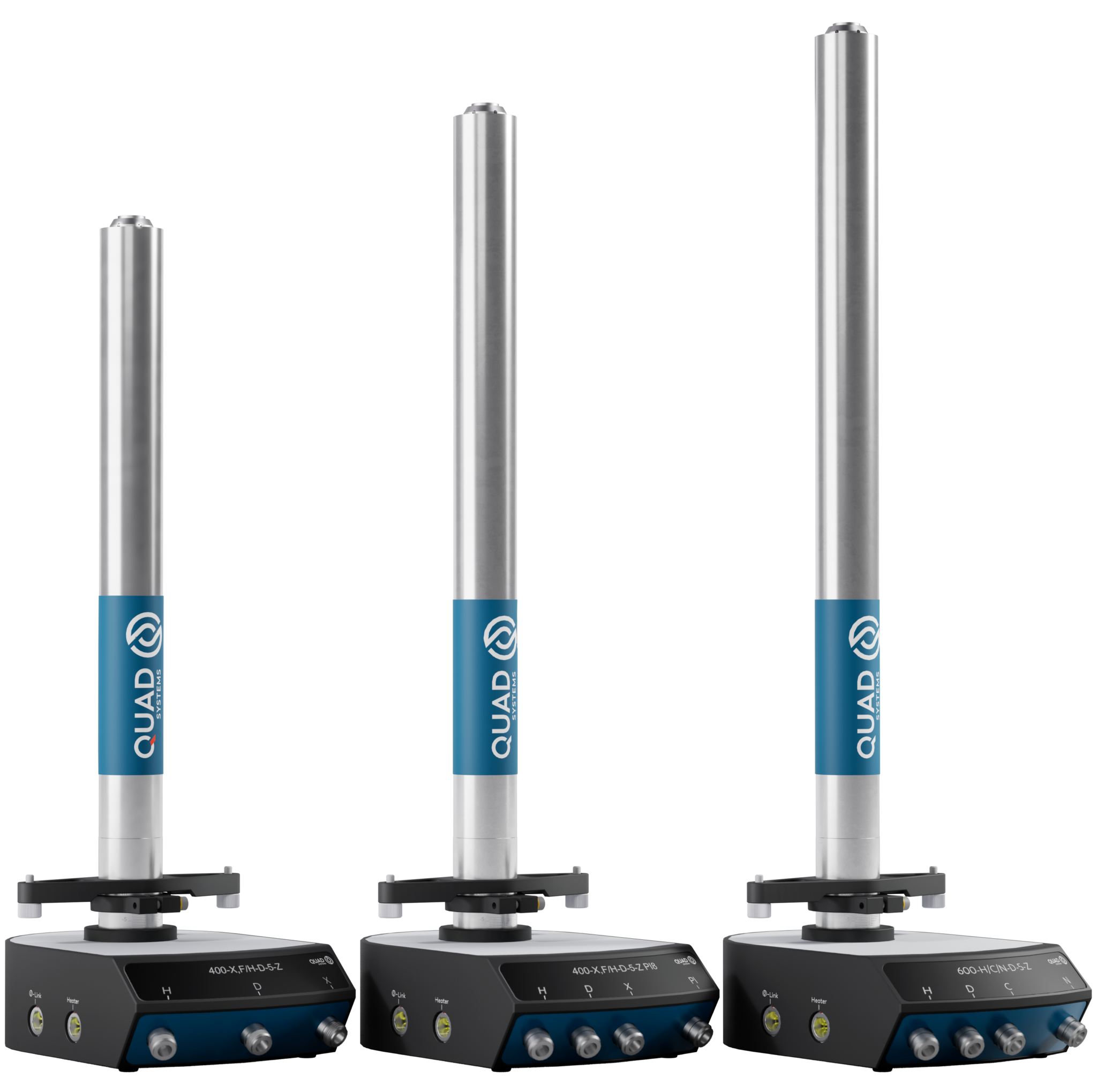

QUAD Probes
Market-leading high-performance probe designs, enabling:
High sample throughput
High sensitivity
Low maintenance costs.
Compatible with QUAD, Bruker, Varian spectrometers.
All QUAD probes are equipped with a probe base, containing our patented fast-tuning and matching technology.
Tune and match is in place for all nuclei within seconds, including lock.
Standard probes
Each QUAD probe is equipped with actively shielded single-axis gradient. All channels including lock can be automatically tuned and matched. The probes can be temperature optimised and operated at temperatures between -100°C and +150°C.
19F on X and 1H channel enabling 19F {1H} and eg 13C {19F}
Full access to all nuclei around 2H on the X channel.
Proton-optimised probes
1H optimised probes: H/X, H/X/C, H/X/F and H/C/N (500-900+ MHz)
Superior 1H sensitivity and water suppression
Highest performance for 19F on 1H coil.
Customised probes
300-900+ MHz
Designed for your application
Focusing on your nuclei of choice
2-20mm sample tubes accommodated
Able to be fitted to all OEM magnets

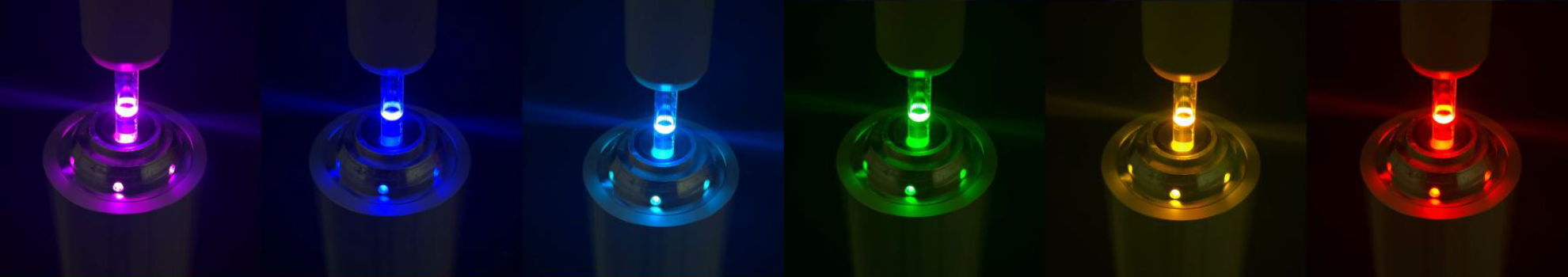

Light probe
2CH probes with light irradiation of sample
4 or more wavelengths (365-680nm)
LEDs integrated inside the gradients
